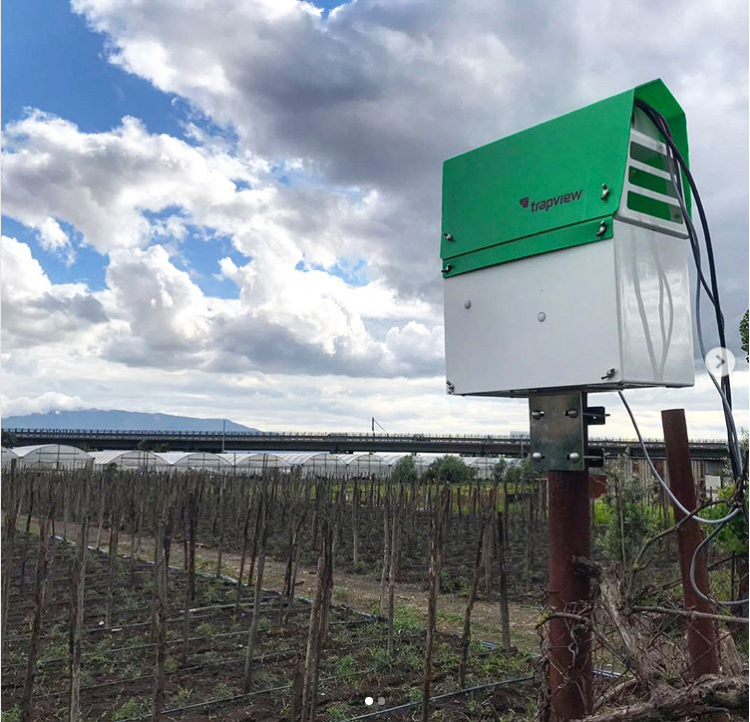

Trapview with self-cleaning mechanism, slit entrance

Pests are lured into device and stick to a sticky roll tensed between two axes. When sticky surface is saturated, simple command through Trapview application will trigger cleaning of sticky surface by winding of sticky roll.

There is the video tutorial of how to assemble the Self-cleaning, slit entrance.


https://www.efos.si/t/help/img/Trapview_SCM_SLIT.png

All components

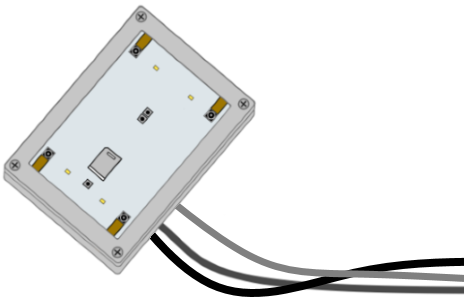

1 Electronics/device

https://www.efos.si/t/help/img/electronics_SCM.png

2 Solar panel with holder

https://www.efos.si/t/help/img/solar_panel_with_holder.png

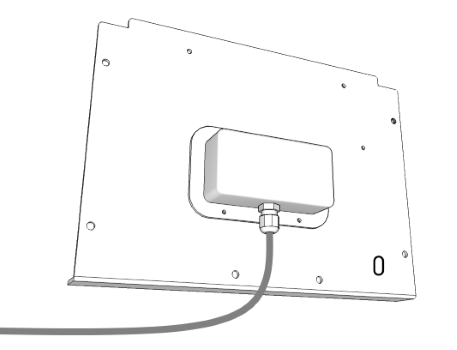

3 Motor plate /plastic part no. 0 with motor

https://www.efos.si/t/help/img/motor_plate.png

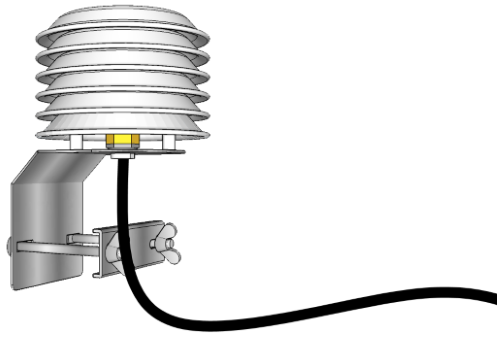

4 TRh sensor (optional)

https://www.efos.si/t/help/img/sensor.png

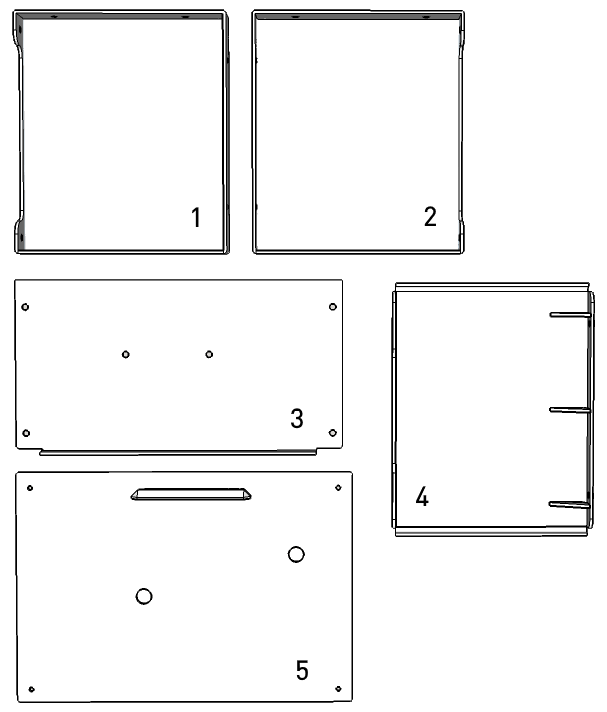

5 Plastic parts for self-cleaning box

https://www.efos.si/t/help/img/plastic_parts_1.png

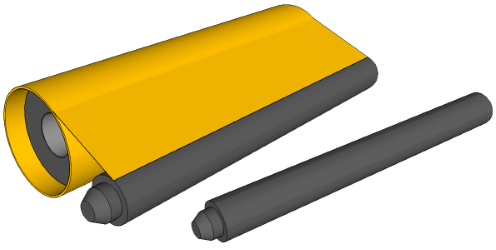

6 Sticky roll with winding and unwinding axels

https://www.efos.si/t/help/img/sticky_roll_axle.png

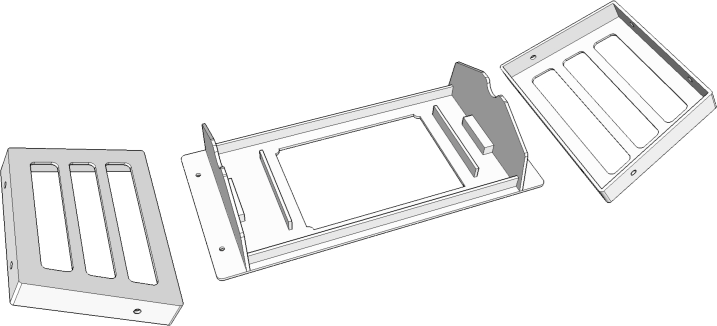

7 Plastic parts for electronics holder/insect entrance

https://www.efos.si/t/help/img/plastic_parts_2_SLIT.png

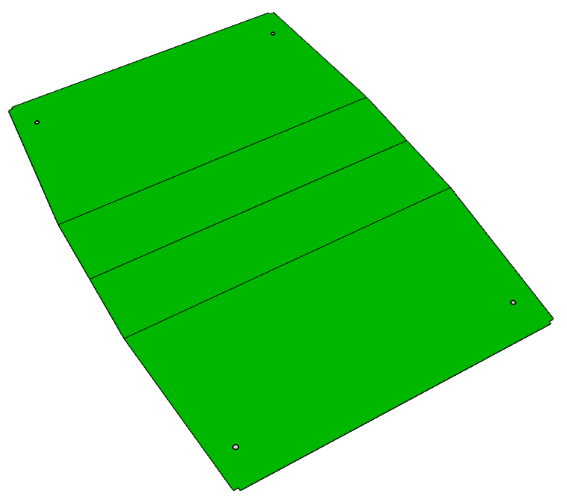

8 Green housing/roof

https://www.efos.si/t/help/img/green_roof.png

9 Holder for self-cleaning mechanism

https://www.efos.si/t/help/img/holder.png

10 Connecting bracket for solar panel fixation

https://www.efos.si/t/help/img/bracket.png

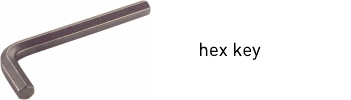

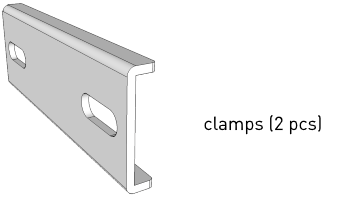

11 Mounting material

https://www.efos.si/t/help/img/button_head_socket_screw.png

https://www.efos.si/t/help/img/wing_screw.png

https://www.efos.si/t/help/img/wing_nut.png

https://www.efos.si/t/help/img/lock_washer.png

https://www.efos.si/t/help/img/mushroom_head_square_neck_bolts_short.png

https://www.efos.si/t/help/img/mushroom_head_square_neck_bolts_long.png

https://www.efos.si/t/help/img/clamp.png

https://www.efos.si/t/help/img/hex_key.png

How to assemble the trap

SELF-CLEANING BOX

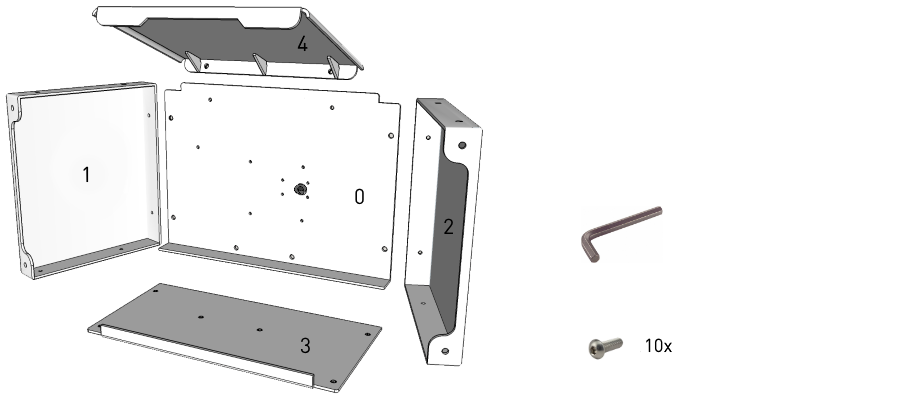

1 Prepare plastic parts from 0 to 4, hex key and 10 button head socket screws.

https://www.efos.si/t/help/img/SCM_assemble_1.png

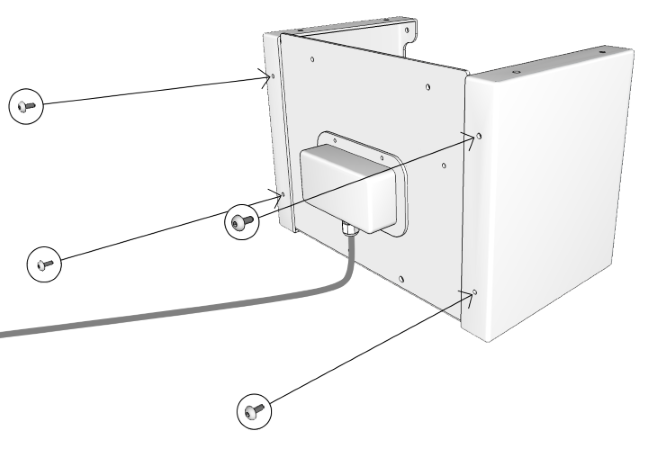

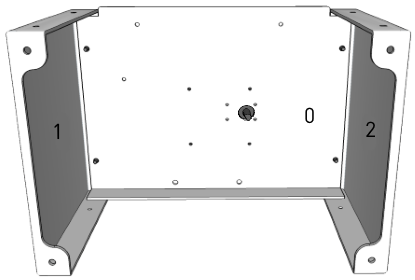

2 Merge plastic parts no. 0-2 by using 4 button head socket screws.

https://www.efos.si/t/help/img/SCM_assemble_2a.png

https://www.efos.si/t/help/img/SCM_assemble_2b.png

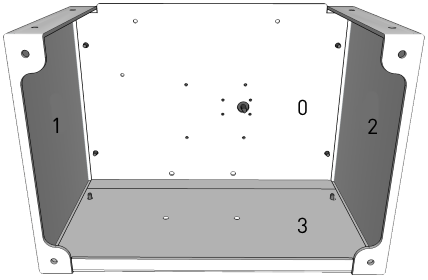

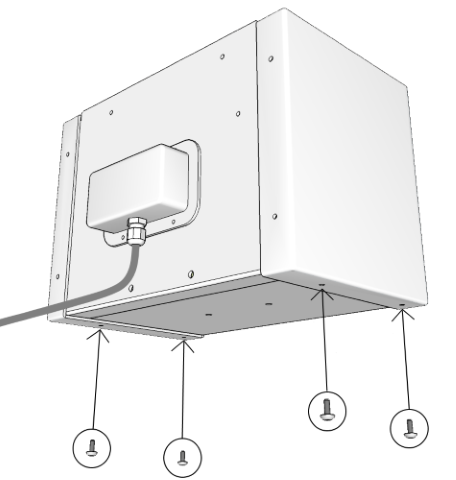

3 Add bottom part (no.3) and fix it with 4 button head socket screws (from bottom side up).

https://www.efos.si/t/help/img/SCM_assemble_3a.png

https://www.efos.si/t/help/img/SCM_assemble_3b.png

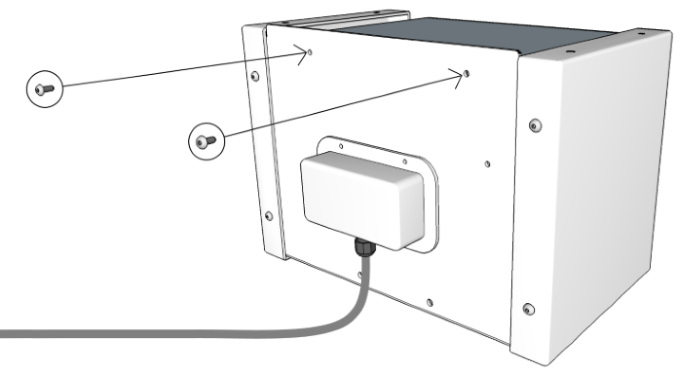

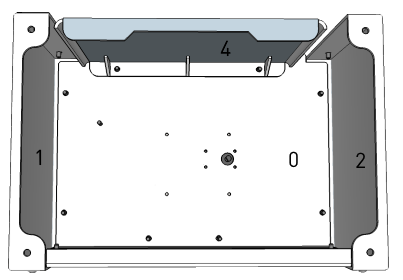

4 Add part no. 4, screw it on the inner side of plastic part no. 0 by using 2 button head socket screws (screwed from outside in).

https://www.efos.si/t/help/img/SCM_assemble_4a.png

https://www.efos.si/t/help/img/SCM_assemble_4b.png

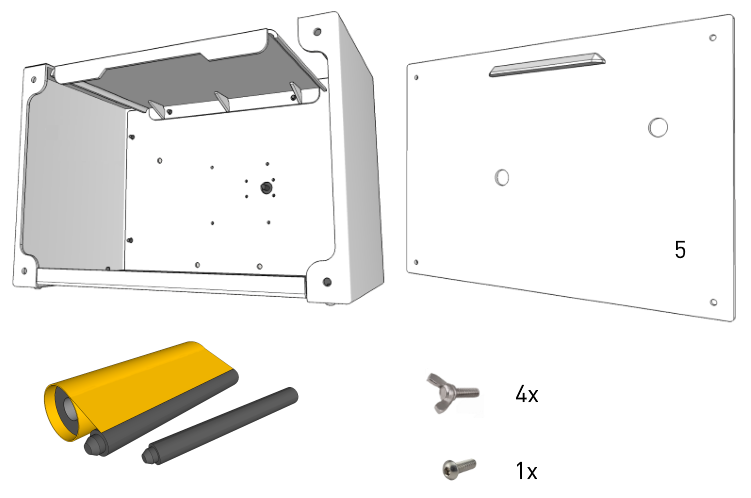

5 Prepare plastic part no. 5, sticky roll with rolling axles, 1 button head socket screw and 4 wing screws.

https://www.efos.si/t/help/img/SCM_assemble_5.png

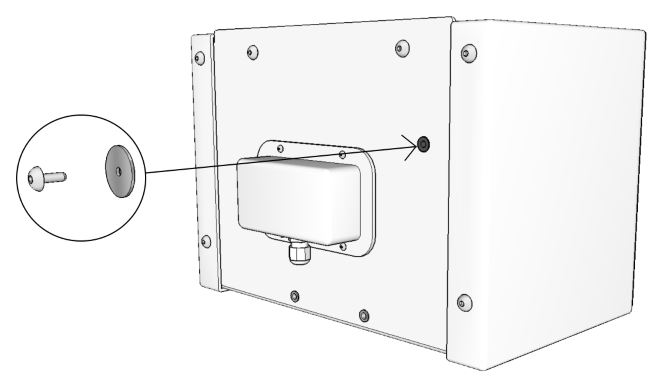

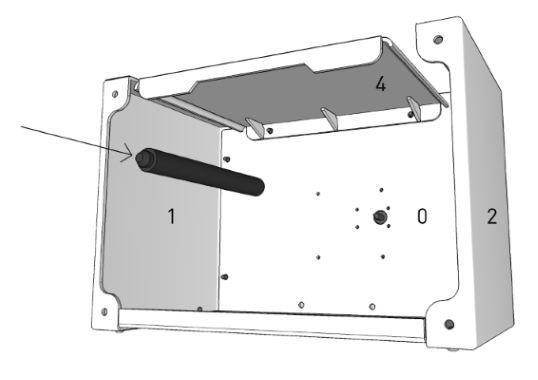

6 Fix axle for unrolling (the one that is holding clean sticky paper) on the inner side of plastic part no. 0 by using button head socket screw – fix it in the position as shown on image, screw it from outside in.

https://www.efos.si/t/help/img/SCM_assemble_6a.png

https://www.efos.si/t/help/img/SCM_assemble_6b.png

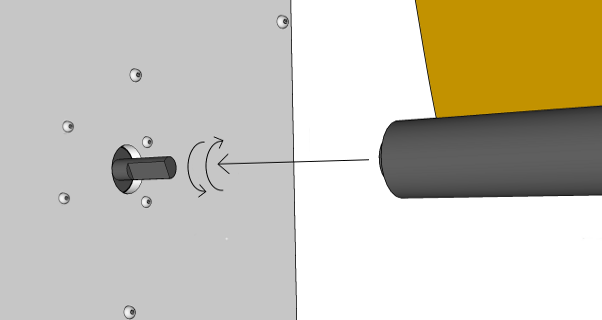

7 Install the sticky stripe between both axles (the second axle has to be mounted on the motor shaft – turn it slightly to slip on).

https://www.efos.si/t/help/img/SCM_assemble_7a.png

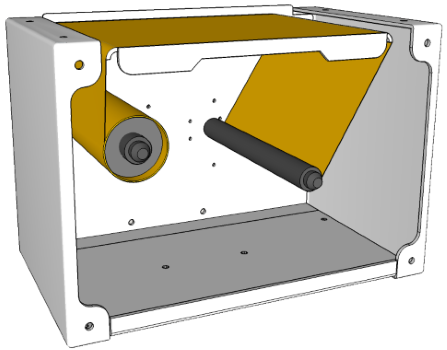

Sticky stripe has to be tensed over the plastic part no. 4 with sticky surface facing outside.

https://www.efos.si/t/help/img/SCM_assemble_7b.png

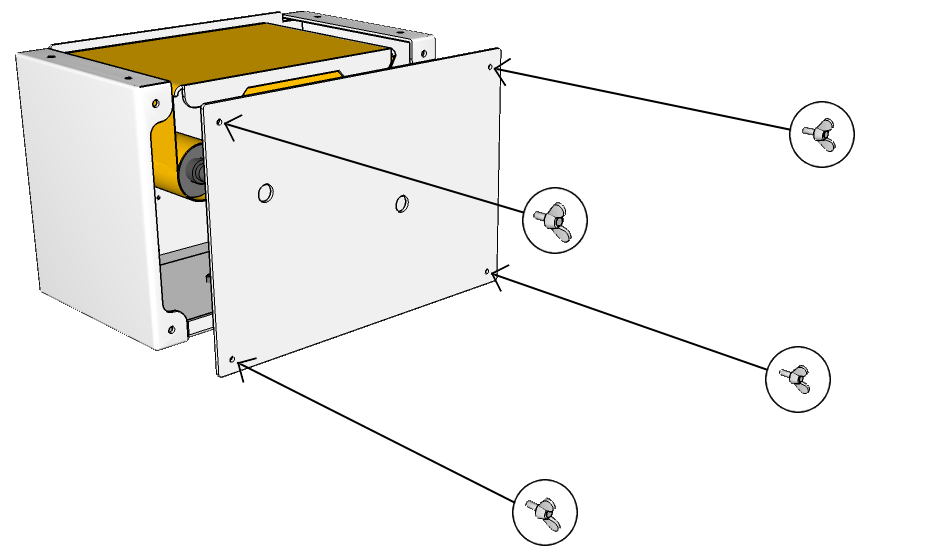

8 Close the self-cleaning box with plastic part no. 5 using 4 wing screws.

Please pay attention that plastic part no. 4 sits properly on the bump on the plastic part no. 5.

https://www.efos.si/t/help/img/SCM_assemble_8.png

ELECTRONICS HOLDER AND INSECT ENTRANCE PARTS

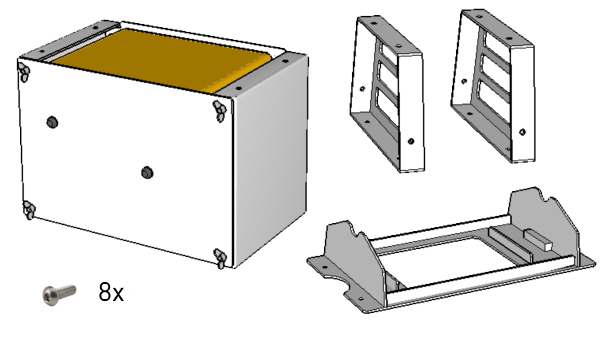

9 Prepare plastic parts no. 6-8 for mounting electronics holder, self-cleaning box and 8 button head socket screws.

https://www.efos.si/t/help/img/SCM_assemble_9_SLIT.png

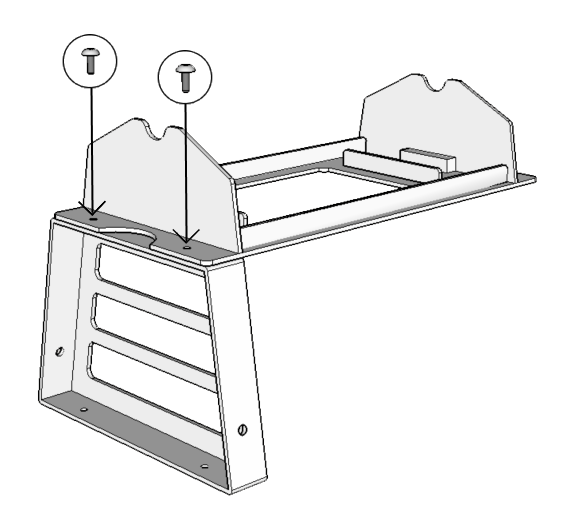

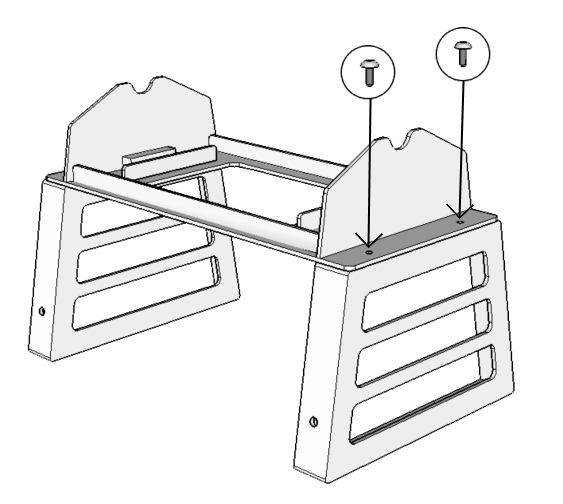

10 Join plastic parts no. 6-8 by using 4 button head socket screws.

Plastic parts no. 6 and 7 are not symmetric, therefore both side panels should look in the same direction, otherwise there will be gaps when mounting the roof.

https://www.efos.si/t/help/img/SCM_assemble_10a_SLIT.png

https://www.efos.si/t/help/img/SCM_assemble_10b_SLIT.png

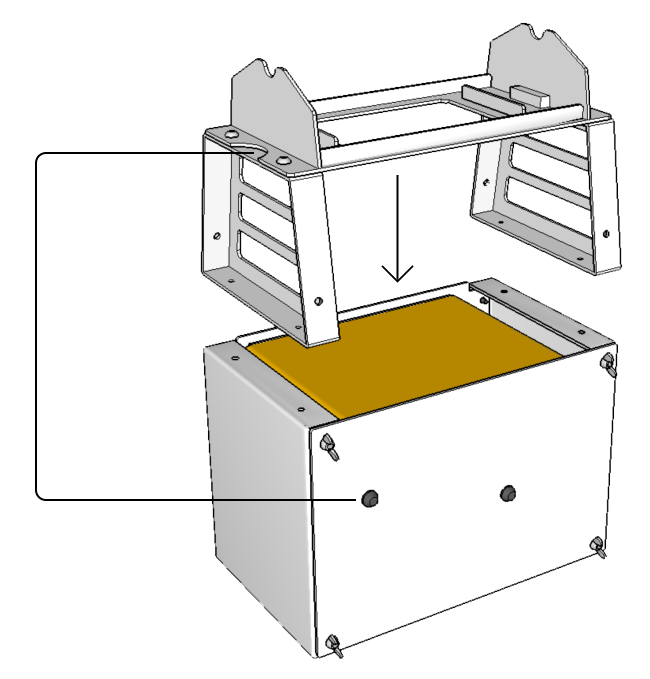

11 Affix the electronics holder on the self-cleaning box.

Plastic part no. 8 is not symmetric - it must be placed in a way that semicircular cut-out is on the same side as the axle holding the clean sticky paper (the upper one of the two).

https://www.efos.si/t/help/img/SCM_assemble_11a_SLIT.png

Join the electronics holder with self-cleaning box with 4 button head socket screws.

https://www.efos.si/t/help/img/SCM_assemble_11b_SLIT.png

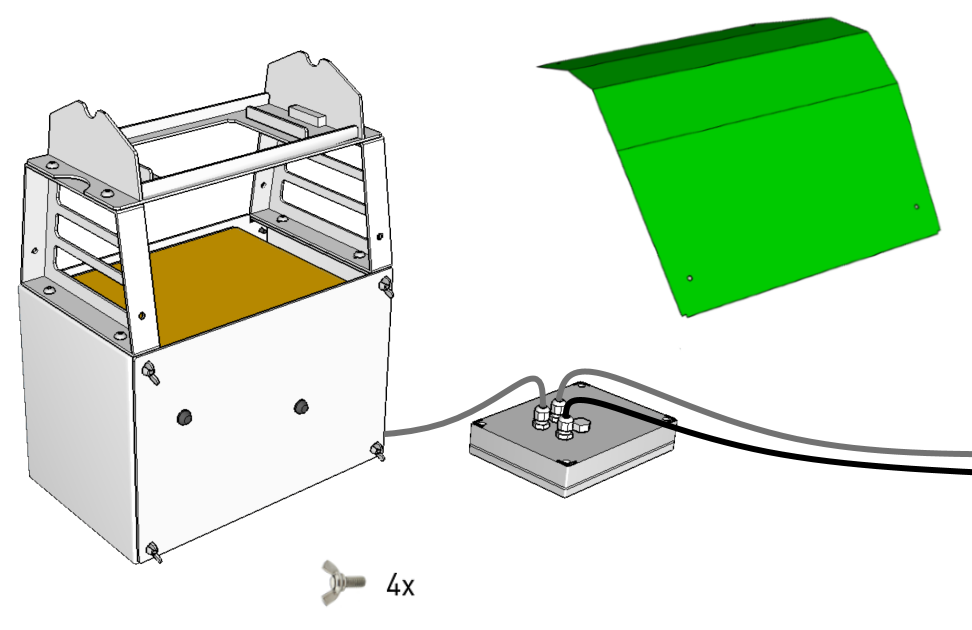

12 Take self-cleaning box with electronics holder and prepare electronics, green housing/roof and 4 wing screws.

https://www.efos.si/t/help/img/SCM_assemble_12_SLIT.png

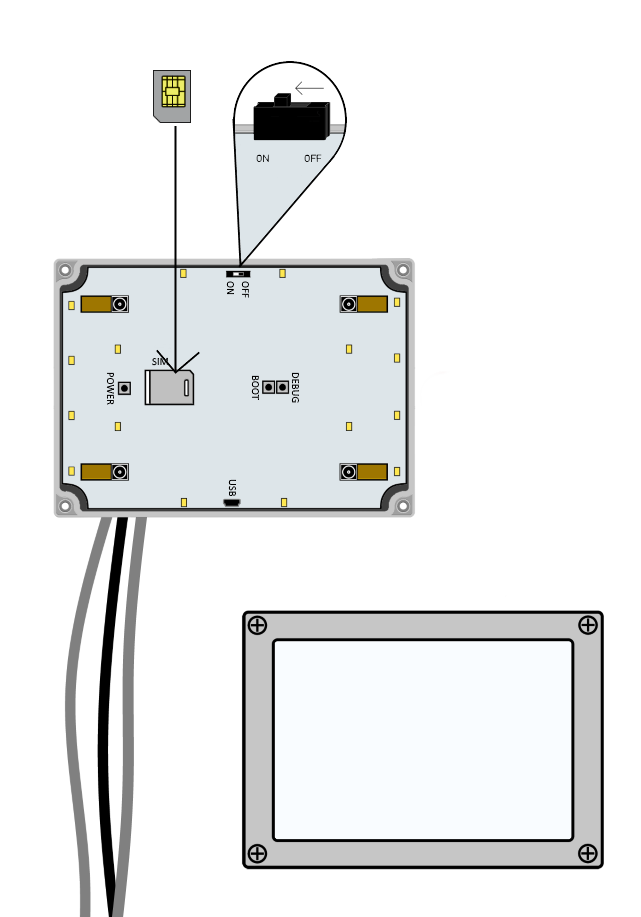

13 Unscrew glass cover from electronics housing, insert SIM card and turn the device ON (ON/OFF switch) and fix glass cover back on electronics housing.

https://www.efos.si/t/help/img/start_device.png

If you can’t or don’t want to wait till the next day to see the first data sent from your device, you can start it by following the manuals in chapter How to start device.

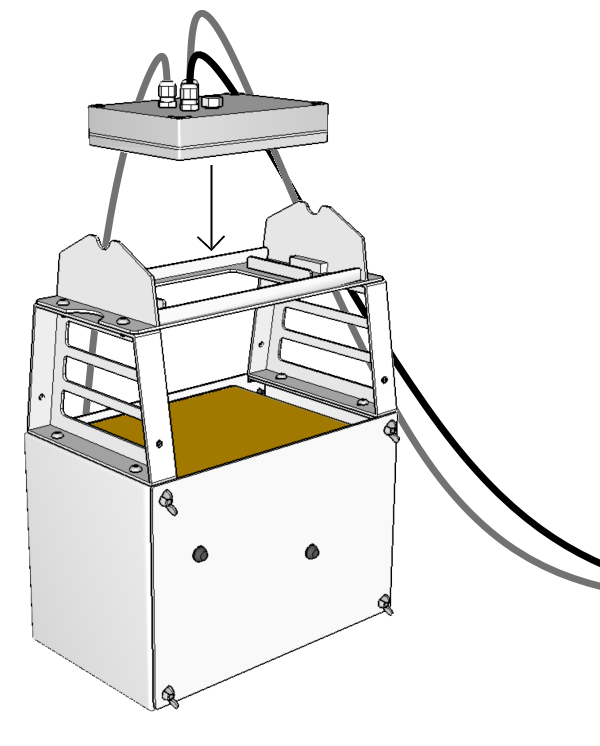

14 Insert the electronics in the holder.

https://www.efos.si/t/help/img/SCM_assemble_14_SLIT.png

If your electronics has a connector for connection of external antenna, you have to connect it, otherwise the device will not work. You will find connection and installation instructions in chapter Antenna.

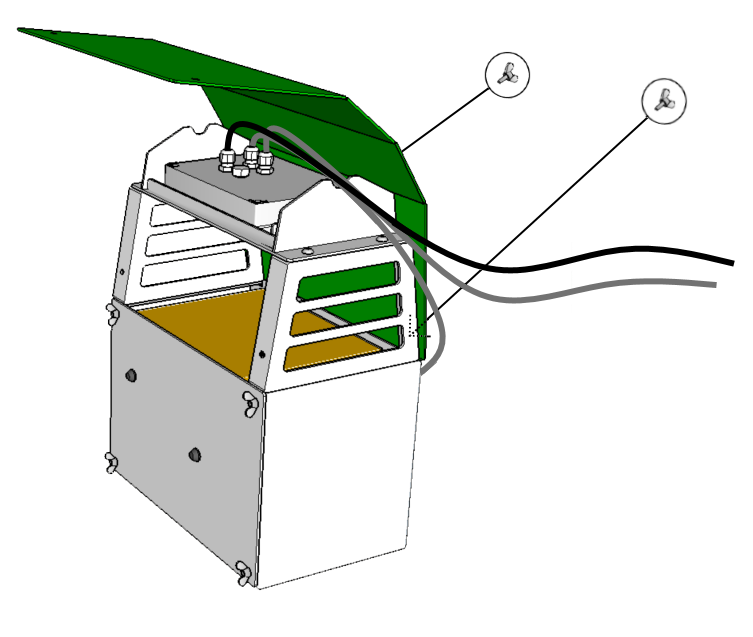

15 Fix the green housing/roof with 4 wing screws.

https://www.efos.si/t/help/img/SCM_assemble_15a_SLIT.png

https://www.efos.si/t/help/img/SCM_assemble_15b_SLIT.png

INSTALLATION ON THE POLE

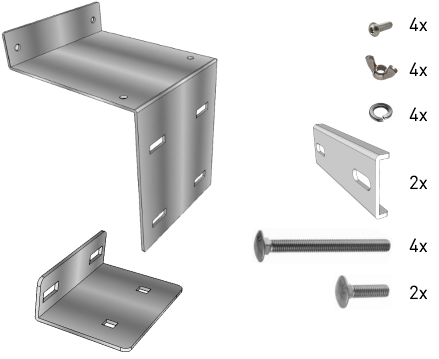

16 For installation of self-cleaning unit on the pole prepare the metal holder, connecting bracket and the remaining mounting material.

https://www.efos.si/t/help/img/SCM_assemble_18.png

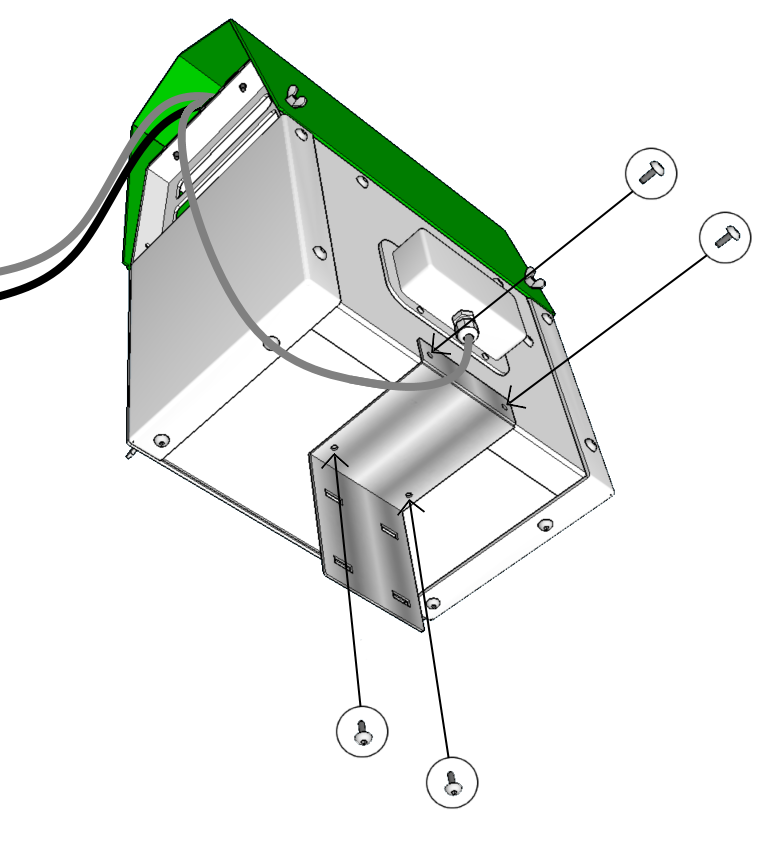

17 Fix the metal holder on the bottom of self-cleaning unit with 4 button head socket screws.

https://www.efos.si/t/help/img/SCM_assemble_19_SLIT.png

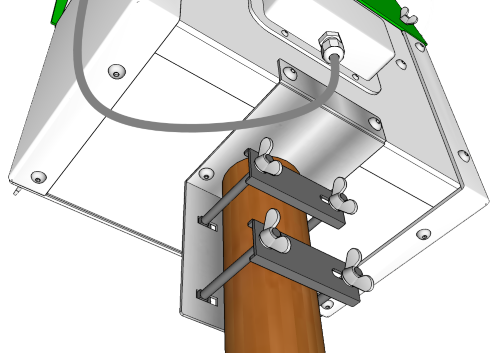

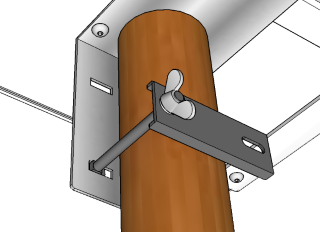

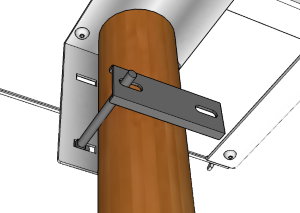

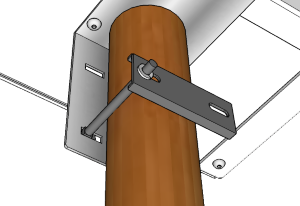

18 Place all other screws, nuts, lock washers, U-profiles as on the image to fix self cleaning unit to the pole (push mushroom head squared neck bolts through the opening in metal holder, attach the U-profile, add lock washer and wing nut).

https://www.efos.si/t/help/img/SCM_assemble_20a.png

https://www.efos.si/t/help/img/SCM_assemble_20b.png

https://www.efos.si/t/help/img/SCM_assemble_20c.png

https://www.efos.si/t/help/img/SCM_assemble_20d_SLIT.png

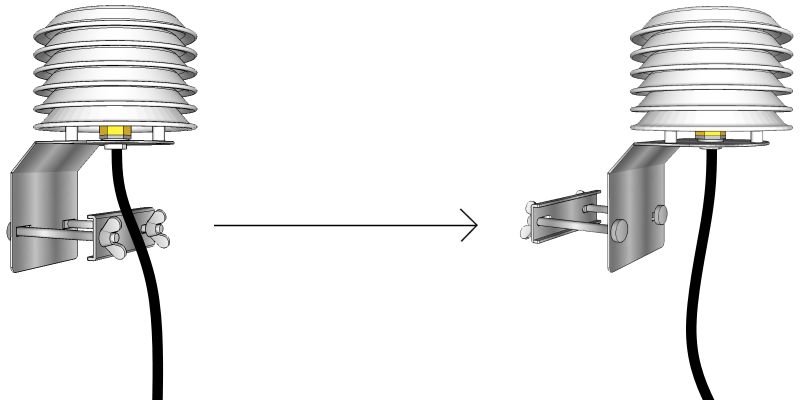

19 Dismantle the sensor’s holder and turn screws, U-profile, lock washers and wing nuts on outer side.

https://www.efos.si/t/help/img/SCM_assemble_21.png

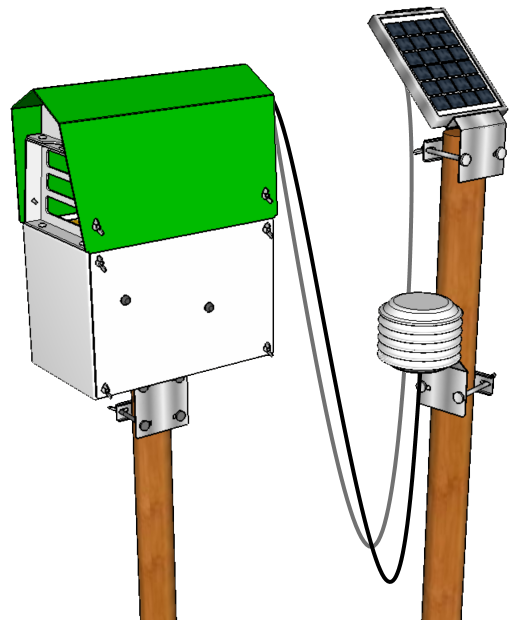

20 The standard mounting height for T-Rh sensor is 2 meters above the ground, therefore we recommend the installation of the system on 2 poles - on top of first self-cleaning mechanism will fit and on the second you will mount solar panel on the top of pole and T-Rh sensor right under.

https://www.efos.si/t/help/img/SCM_assemble_22_SLIT.png

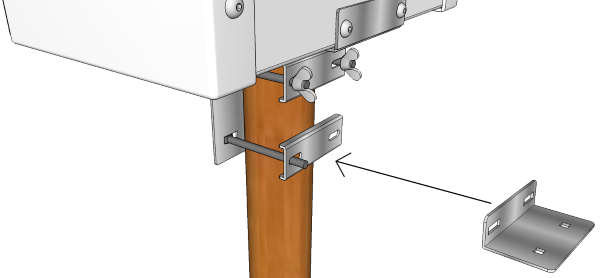

21 In case of single pole mounting, you will use connecting bracket for solar panel fixation.

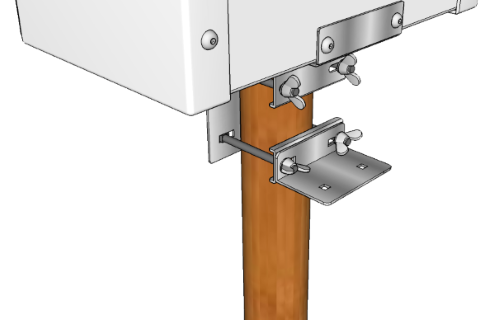

When fixing self-cleaning unit on the pole you will attach connecting bracket to the lower U-profile.

https://www.efos.si/t/help/img/SCM_assemble_23a.png

https://www.efos.si/t/help/img/SCM_assemble_23b.png

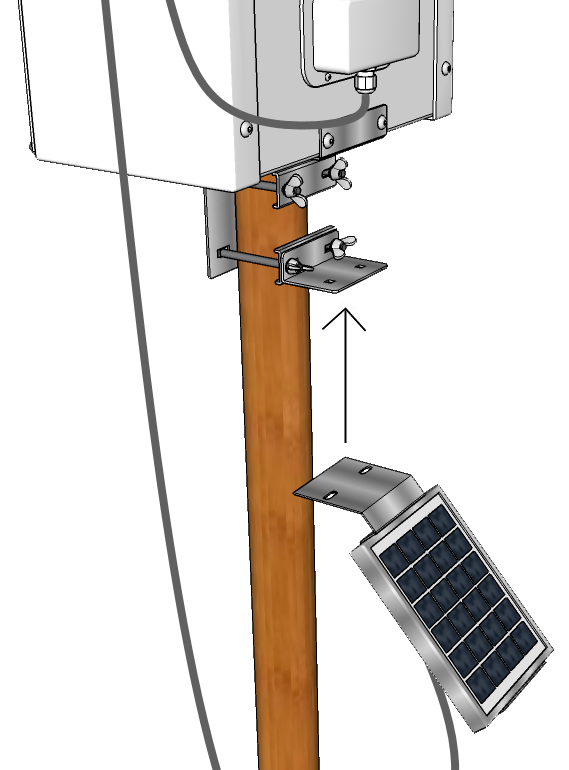

Remove all screws, lock washers, nuts and U-profile from solar panel holder and attach solar panel holder to connecting bracket.

https://www.efos.si/t/help/img/SCM_assemble_23c.png

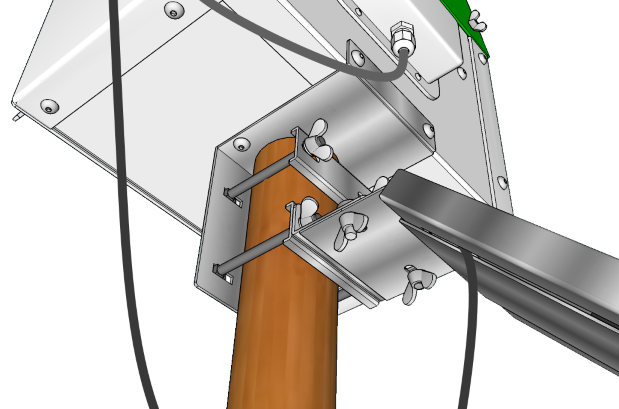

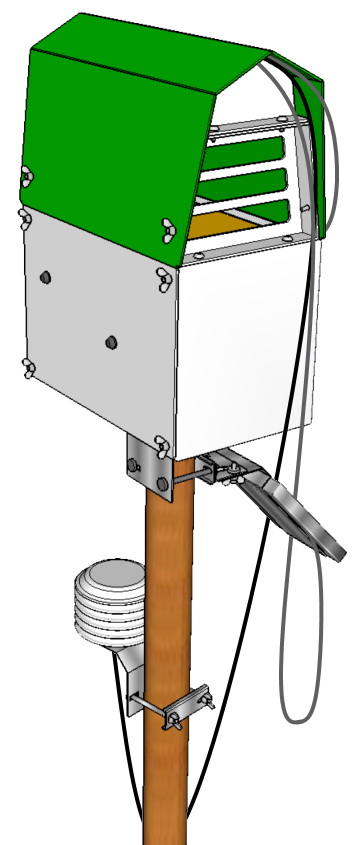

For connecting the solar panel you will use short mushroom head squared neck bolts, lock washers and wing nuts.

https://www.efos.si/t/help/img/SCM_assemble_23d.png

https://www.efos.si/t/help/img/SCM_assemble_23e_SLIT.png

https://www.efos.si/t/help/img/SCM_assemble_23f_SLIT.png

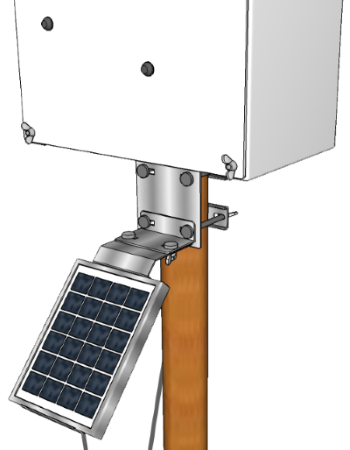

There is another option for solar panel instalation – you can attach it from the other side if you attach connecting bracket directly to metal holder for self-cleaning mechanism.

https://www.efos.si/t/help/img/SCM_assemble_23g.png
