Antenna

For the country areas with weak signal we recommend using an external antenna, which improves the signal gain and thus enables data transfer from distant areas. It is best to consider about the need for antenna before buying the device, because later changes are not possible.


Antenna connection

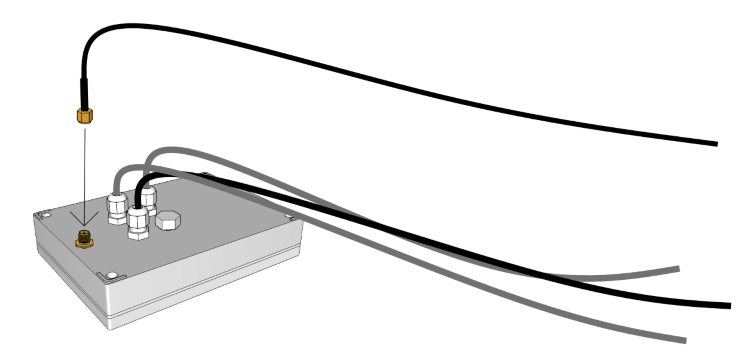

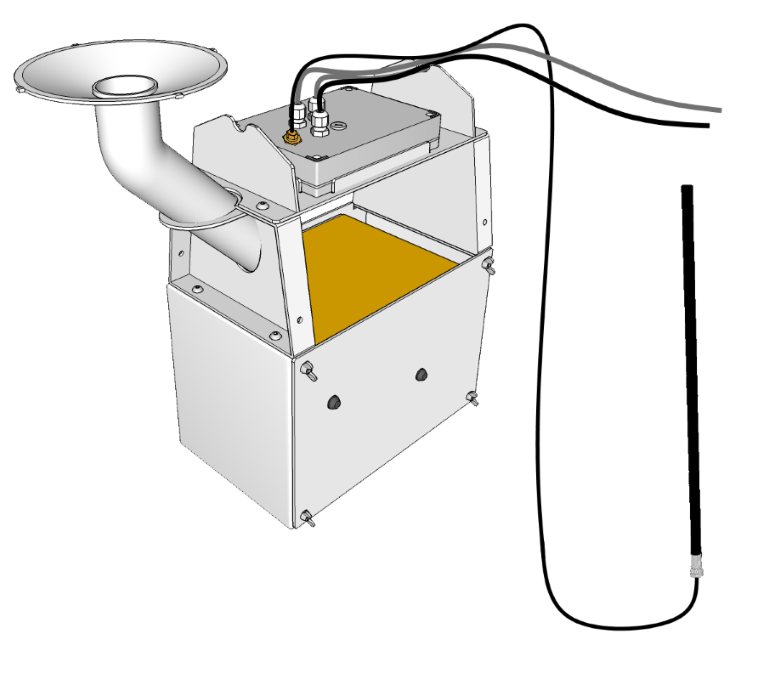

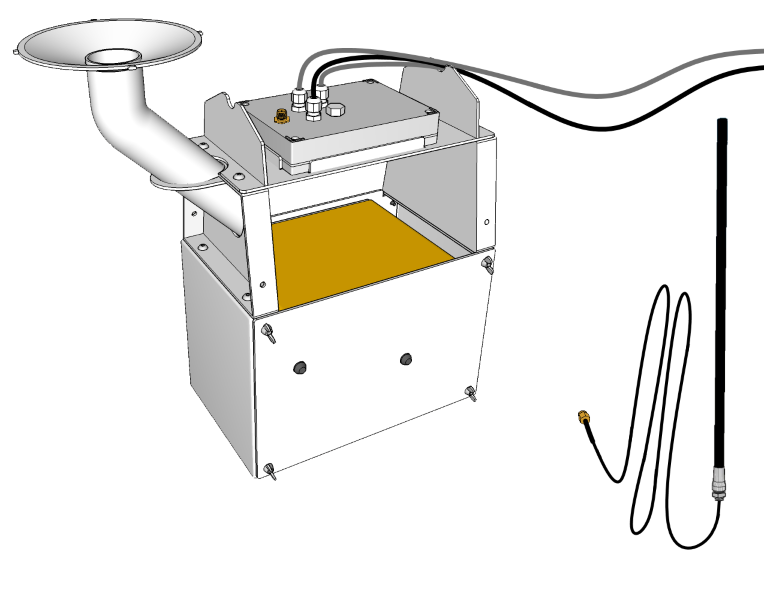

You will connect the antenna before closing electronics into housing. Electronics with connectors for external antennas do not integrate additional internal antenna, therefore without connecting the antenna device will not work.

_images/antenna_conection.png

_images/antenna_conection1.png

_images/antenna_conection2.png

Antenna installation

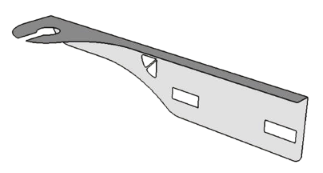

1 Prepare the antenna holder

_images/antenna_holder.png

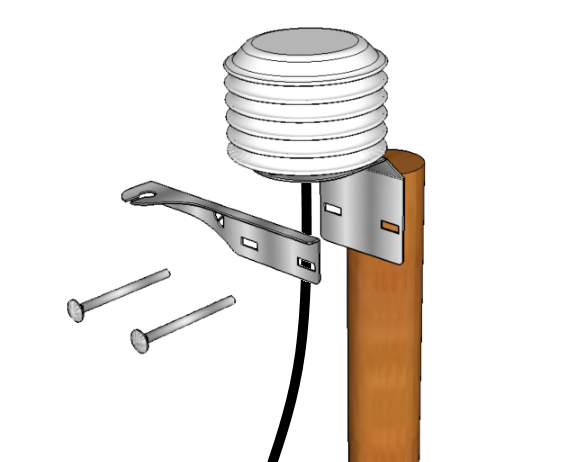

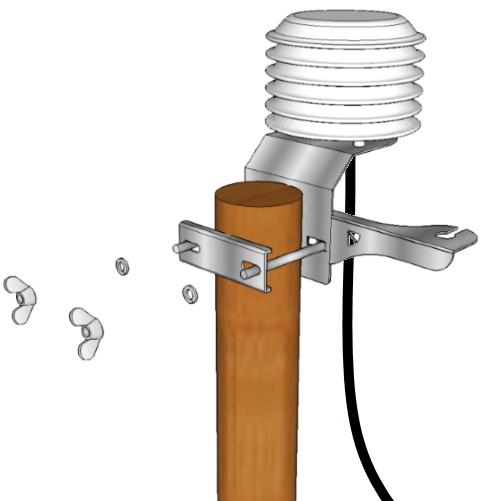

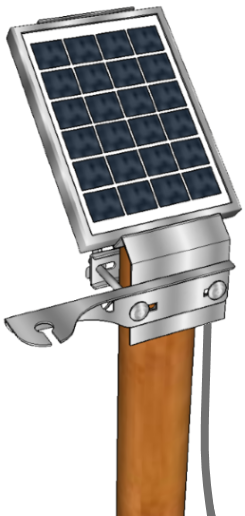

2 Mount the antenna holder tight to the sensor holder or to solar panel holder

_images/antenna_holder_connection1.png _images/antenna_holder_connection2.png

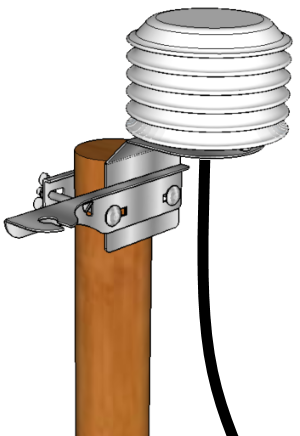

_images/antenna_holder_connection3.png

_images/antenna_holder_connection3_solar_panel.png

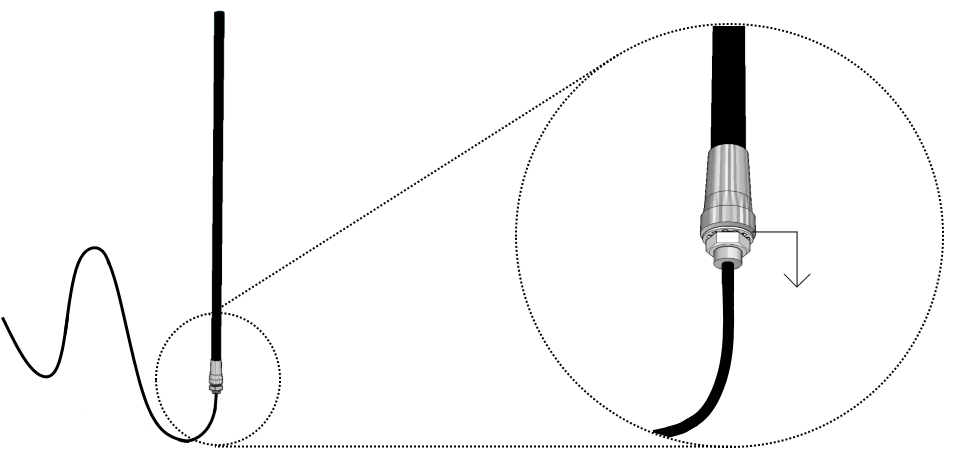

3 Unscrew the nut and move star washer down the antenna cable

_images/antenna_1.png

_images/antenna_2.png

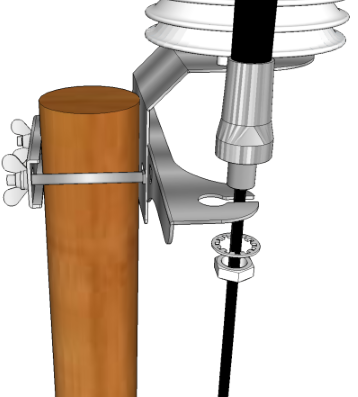

3 Push the antenna cable into the circular cut in the antenna holder and lean the antenna base on the holder

_images/antenna_3.png

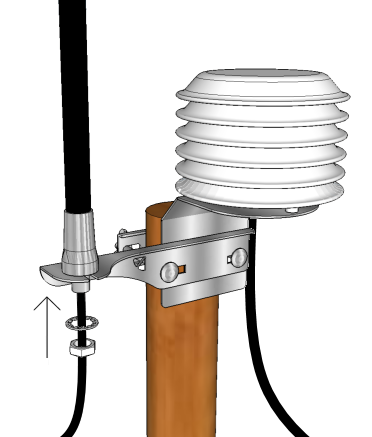

4 Push the washer back and tighten the nut

_images/antenna_4.png

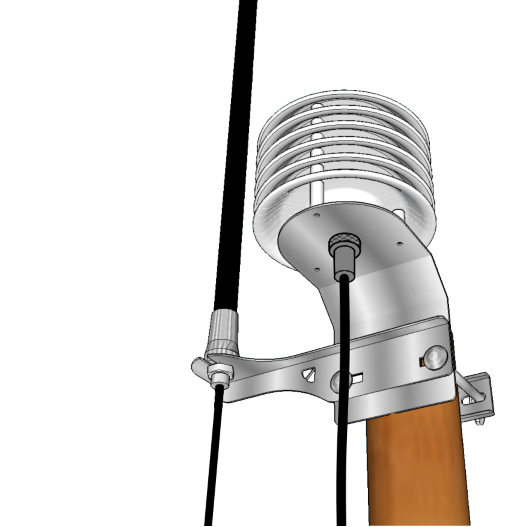

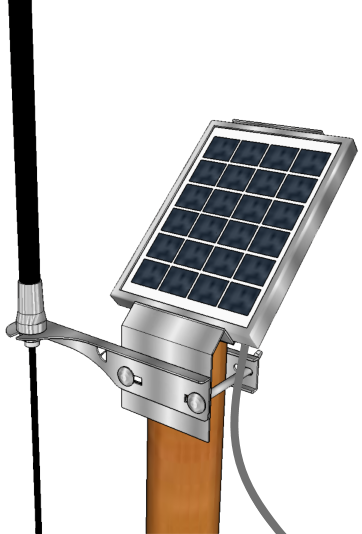

_images/antenna_5a.png _images/antenna_5b.png


You can also use the small holder, originally attached by the antenna producer

_images/antenna_holder1.png

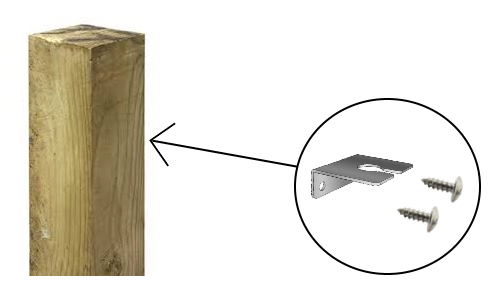

You can use attached screws, but better if you find some longer screws, which will fit

_images/antenna_original_holder.png

Attach the holder to the wooden pole

_images/antenna_original_holder1.png

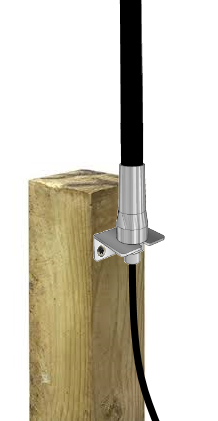

Fix the antenna

_images/antenna_original_holder2.png
